There is Touch screen support in Runtime Mode, however, touch-screens are not supported in Edit Mode.

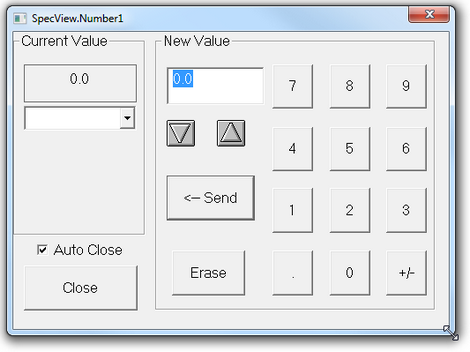

Data entry boxes are resizeable. Their size and position is remembered, which is particularly helpful when using a Touch Screen, as larger buttons are easier to use





The popup menu on Trend Charts in Runtime Mode can be accessed using the left mouse button, for use on touch-screens which don't have a 'right' mouse button.



In Edit Mode the popup menu is only available using the right mouse button. This because the left button selects the Trend Chart for moving and resizing.



On the Button & View tab on the Trend Chart Properties box there is the option to have the Setup button shown in the top-right corner of  the Trend Chart.

The Setup button is useful for touch screen users to be able to quickly and easily access the Trend Chart Properties box. The alternative method of opening this box is by choosing Setup Chart from the popup menu.



The Password Entry box can be resized using the < Resize >  button which centers and keeps enlarging the box until the limit of the screen size is reached.

The resize 'grippy' in the bottom right corner of the frame can also be used to resize the box.

The size and position of the Password Entry box is remembered.



However, other Runtime Mode features such as Historical Replay batch look-up and Trend Chart setup would require the touch screen to have an on-screen keyboard.
