Note: Driver defaults to 7 Databits, Odd Parity, 1 Stop Bit



Watlow Controllers must be set to ANSI X3.28 protocol, NOT the XON/XOFF protocol.  See below for details



Format is:

 AA

Where:

AA:        Two digit address of controller in decimal, 00 to 31



Examples:

00

31



Protocol Setup:

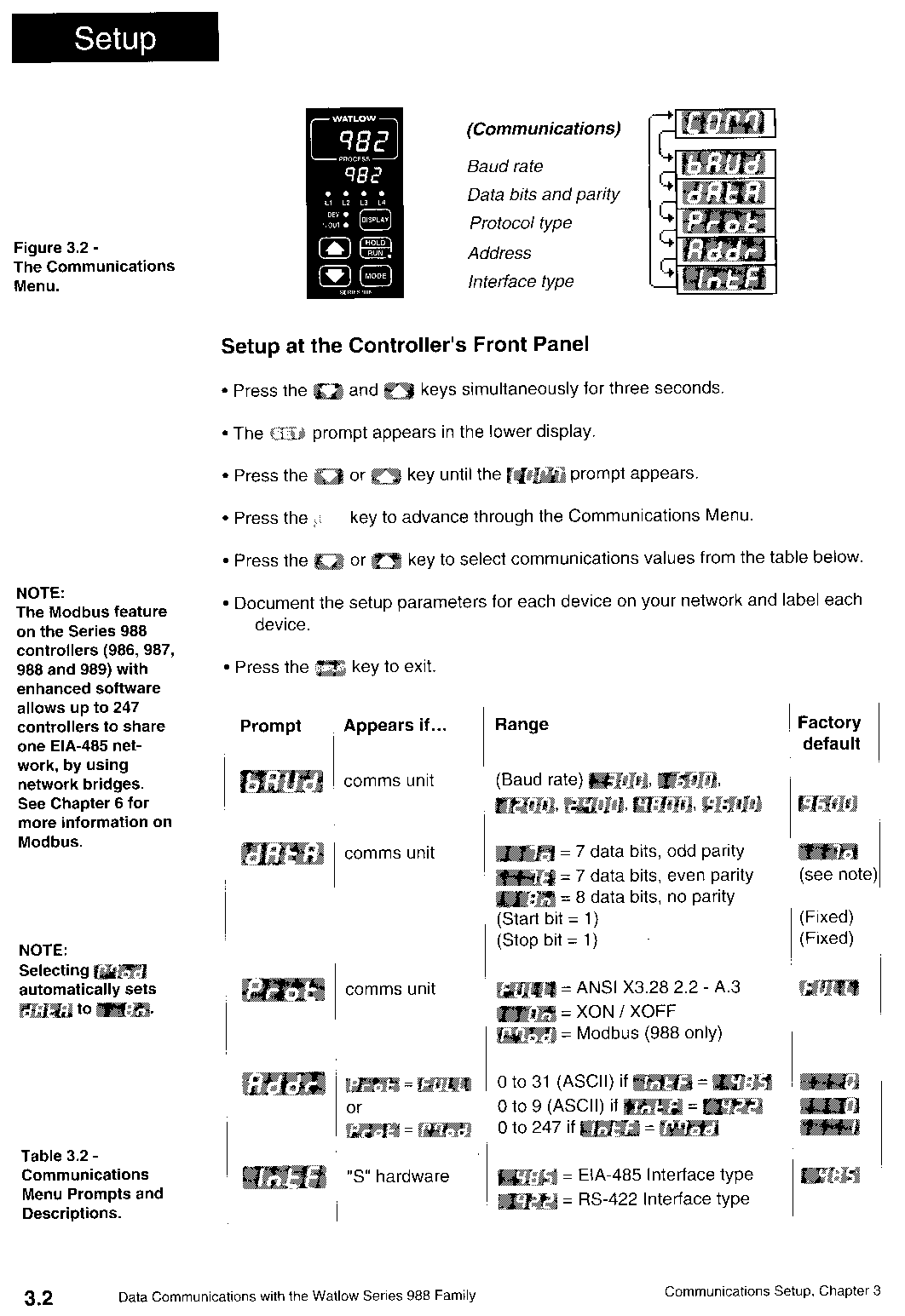

For the Series 988 Controllers, refer to page 3.2 of "Data Communications with the Watlow Series 988 Family of Controllers", Document number "W98F-XUMN Rev A02", reproduced below:



Set the Protocol to "FULL".  Do not set "On" or "Mod"
