There have been a number of other minor improvements:
| • | The Logging tab of Preferences has a setting for the number of decimal places to be logged. |
| • | The decimal places of individual values used by Log File Reports and by the Line Writer can be specified using CVTSETTINGS.INI |
| • | Copying and Pasting of objects on a screen (GDW) will preserve their associations with variables as well as their Color Dynamics and Position Dynamics settings. |

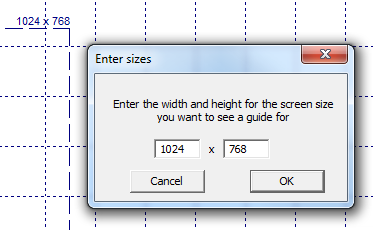

| • | To assist in designing screens (GDWs) intended for use on screens of a different size the Screen Size Guide menu item on the View menu allows the actual screen size (in pixels) to be specified. |
The Show Screen Size Guide menu item is used to display the guide.
There are other menu items to specify the color of the guide, etc.
| • | XXX has been replaced by specifics: N/R (No Response), NPV (Not Present Value), NCA (Not Currently Available), T/O (Timeout) |
| • | Acknowledge Alarms button/strategy action |
| • | The menu items on the Setup->Database sub-menu have moved to the Internal Data menu on the Variables List |
| • | New Math functions: |
<Number / Integer / Enum / Time >
ADD / SUBTRACT / MULTIPLY
<Number / Integer / Enum / Time>
put result in <BOOL>
If the result of the math is 0, then bool will be off, if the result is non-zero, then bool will be on.
This allows an Enumerated Alarm to be 'translated' into On/Off.
Note: The other Math types will all result in Bool being set to Off.
