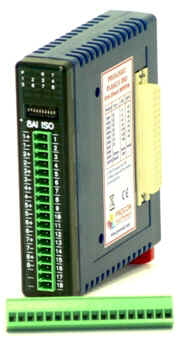

The PL8AI/V ISO is a 8 channel voltage input module. The inputs are fully isolated from input to logic and between inputs. This module is ideal for monitoring voltages which are isolated from each other and cannot be connected to a common point of reference.
The standard setting for the PL8AI/V module is 0 – 10V. An input voltage of 0 – 10Volts represents an output of 0 – 4095 and 2 volts would give a reading of 819 +/- 1LSB. To obtain an output value of 0 to 4095 for an input signal of 2 to 10V the offset switch is switched on. The module can also be configured for 16 bit (0 – 65535). This module can also be configured for a 0 – 10.000V input range or +/- 10.000V input.
