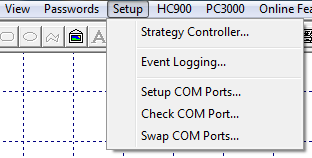

<< Click to Display Table of Contents >> Navigation:  Editing a SpecView Project > Menubar and Toolbar in Edit Mode > Setup Menu





Note: The menu items that were on the Database sub-menu in previous versions have been moved to the Internal Data tab on the Variables List.



Strategy Controller

Displays the Strategy Engine setup box

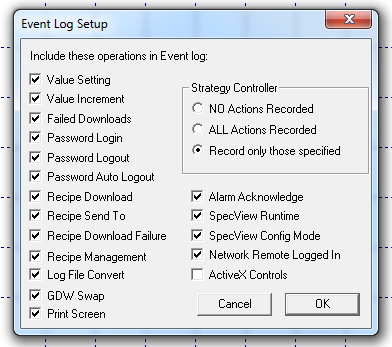

Event Logging

Sets the actions and events, which will be included in the Event Log





Strategy Controller events and actions can also be logged to the Event Log by checking the 'Log To Event Log' box

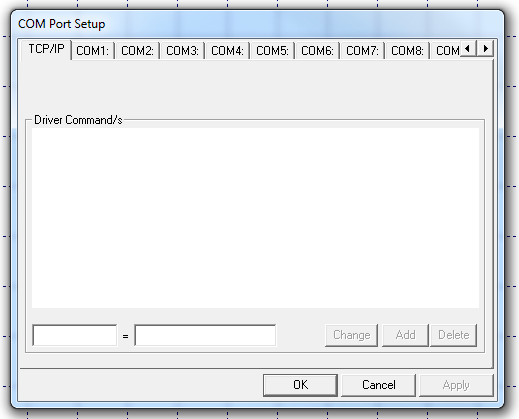

Setup COM Ports

Displays the COM Port Setup box and allows the COM port(s) settings to be changed and driver commands added.





Check COM Port

Checks whether the COM Port is available and working.

Does NOT check communications. The port might be a modem.

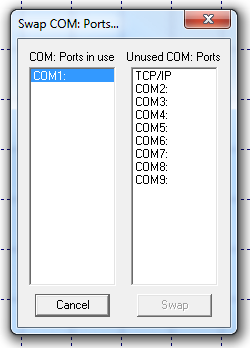

Swap COM Ports

This allows the COM ports for multiple instruments to be re-assigned without manually editing each instrument.
